Product Description

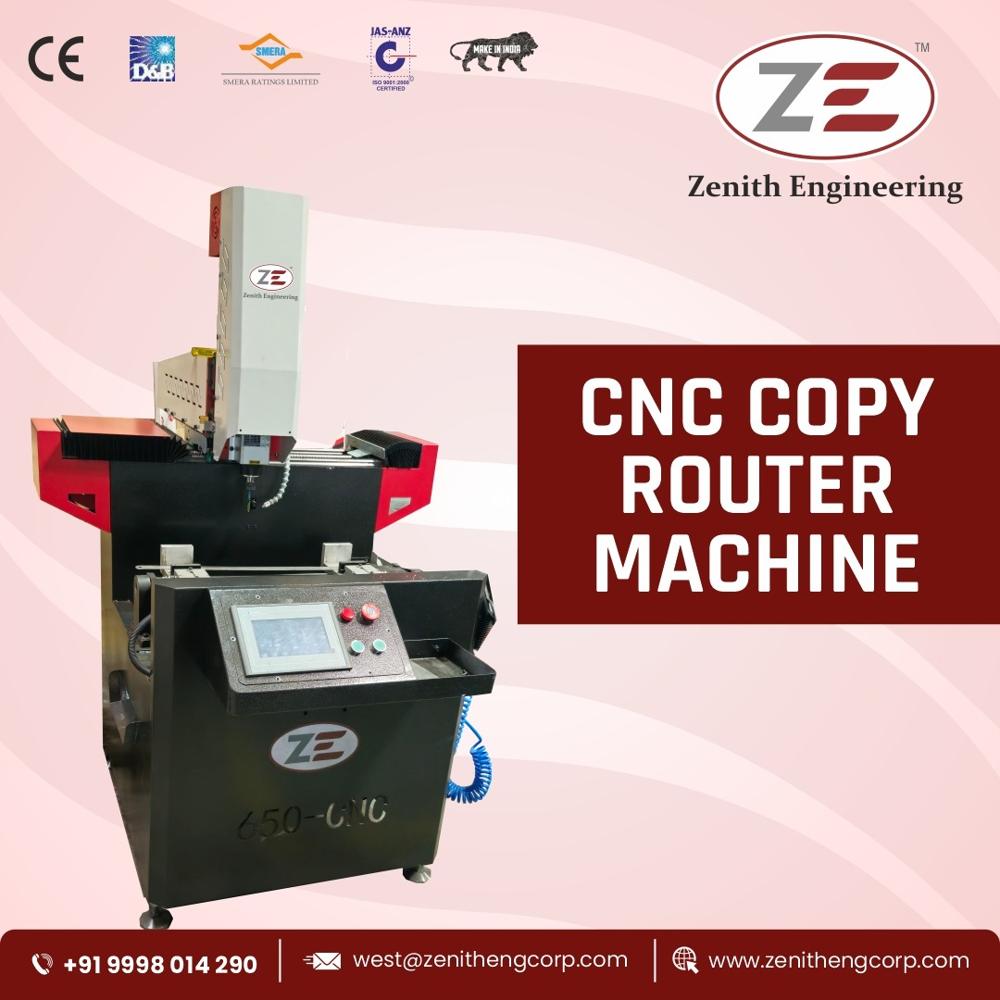

Multi Head Copy Router Machines
Offered Multi Head Copy Router Machines are factory-made in accordance with industrial regulations. These come with interpolating numerical control of machining activities on X as well as Y axes. These come with high precision reduction units, belt drives, DC motors and recirculating ball screw transmissions. The machines are provisioned with manual levers as well as rotational tables with pneumatic rotation methods. These Multi Head Copy Router Machines we offer have high routing capacity and can streamline the program use. These productions have simple operations as well as extended serviceability.
Specifications:
| Air Pressure | 5-7 Bar |
| Width | 750 mm |
| Motor Power | 0.75 kW |
| Max Cutter Dia | X-300/Y-150/Z-150 mm |
| Length | 750 mm |
| Height | 1050 mm |
| Gross Weight | 250 Kg |
| Air Pressure | 5-7 Bar |
This machine is engineered for simultaneous processing of three profiles, significantly increasing manufacturing efficiency. Its adjustable heads and robust design make it ideal for large-scale production tasks, especially in the fabrication of doors, windows, facades, and curtain walls. Operators benefit from precise, repeatable results with minimal manual intervention.
Precision Clamping & OperationChoose between pneumatic and manual clamping systems for secure and versatile profile handling. The intuitive controls, including a foot pedal and control panel, combined with interchangeable hardened steel templates, make complex profile routing both consistent and manageable, catering to a wide range of applications and job requirements.
Optimized Safety & MaintenanceBuilt-in emergency stop, spindle protection cover, and overload safeguards ensure operator safety. The integrated air cooling system protects the spindle during operation, while manual grease lubrication points facilitate straightforward maintenance to prolong machine life and reliability.
FAQs of Multi Head Copy Router Machine:
Q: How does the multi-head routing function improve production efficiency?
A: The three-head design enables simultaneous processing of up to three profiles, allowing operators to complete multiple routing tasks in a single cycle. This significantly speeds up manufacturing, reduces operator workload, and enhances overall productivity, especially in high-demand environments such as window and curtain wall fabrication.
Q: What types of profiles and materials can this copy router machine handle?
A: This machine is suitable for routing aluminum, PVC, and light metal profiles, making it especially useful for the door and window frame industry, curtain wall manufacturing, and facade cladding. Its adjustable guides and high-rigidity structure support a wide range of profile sizes and designs.
Q: When should I use pneumatic clamping versus manual clamping?
A: Pneumatic clamping is ideal for frequent, repetitive jobs where speed and uniform clamping force are beneficial, while manual clamping offers a cost-effective option for smaller batches or more varied production runs. The choice depends on your workflow needs and volume requirements.
Q: Where is this copy router machine commonly used?
A: The machine is widely utilized in industries involved in architectural aluminum fabrication, window and door production, and facade construction. It is commonly found in manufacturers, exporters, and fabricators workshops, particularly across India.
Q: What is the process for changing templates on the machine?
A: Templates are made from hardened steel and are interchangeable to accommodate varying routing requirements. Operators can quickly swap templates to adapt the machine for different profiles, ensuring both efficiency and accuracy during production runs.
Q: How does the integrated air cooling and manual lubrication system benefit the operation?
A: Integrated air cooling helps maintain optimal spindle temperature during high-speed operation, ensuring reliability and extending the life of the motor. Manual grease lubrication points allow for easy routine maintenance, keeping moving parts in excellent condition and minimizing downtime.
Q: What are the main safety features included with the machine?
A: The machine is equipped with an emergency stop button, spindle protection cover, and overload protection. These features collectively safeguard users from potential hazards during operation and help prevent damage to the equipment in case of unexpected incidents.
